Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar

Product Categories

Zhejiang TongJiang Holdings Company

Contact Now

Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar

Name: Flanged Globe Stop Valve With Double Acting Pneumatic Actuator PN 16 Bar
Brand: TongJiang
Price: 300 USD

Buy cheap Flanged Globe Stop Valve With Double - Acting Pneumatic Actuator PN 16 Bar product

Brand Name : TongJiang

Model Number : Globe Stop Valve

Certification : ISO 9001

Place of Origin : CHINA

MOQ : 5 Piece

Price : USD 300-5000 per piece

Payment Terms : L/C, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per month

Delivery Time : 7-14 days

Packaging Details : Wooden cases

Globe Stop Valve Material : Cast steel, Alloy Steel, Stainless Steel

Globe Stop Valve Connection : Flange

Globe Stop Valve Pressure : PN 16 Bar, PN 25 Bar, PN 40 Bar

Globe Stop Valve Temperature : Uo to 425°C

Globe Stop Valve Actuator : Penumatic Double Acting

Globe Stop Valve Face to Face : GB/T12235

Globe Stop Valve Size : DN50 to DN300

Globe Stop Valve Application : Compressed Air, Nitrogen

Contact Now

Globe Stop Valve with Double - Acting Penumatic Actuator in Flange , PN 16 bar

PRODUCT INTRODUCTION

Description of Globe Stop Valve

J641H Pneumatic flange globe stop valve adopts double-acting cylinder, using upper or lower cavity air intake to control the valve remotely, easy to operate and flexible. Cylinder medium: compressed air, nitrogen. The utility model has the advantages of simple structure, convenient manufacture and maintenance, small working stroke and short opening and closing time, and the sealing surface of the closing body (disc) and the valve seat adopts conical sealing, which has the advantages of small closing force, erosion resistance and reliable sealing. The valve seat can be replaceable, and can be combined with the sealing material of the closing part at will to meet the working conditions and extend the service life.

Globe Valve Design Specification

Design and Manufacture		GB/T12235
Flange Connection	Face to Face	GB/T12221
	Flange Size	JB/T79
Inspection and Test		JB/T9092
Material	Carbon Steel	GB/T12229
	Stainless Steel	GB/T12230
	Alloy Steel	Q/ZB66
Marking		GB/T12220
Supply		JB/T7928

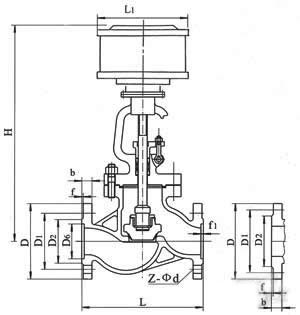

Globe Stop Valve Drawing and Datasheet

Main dimensions of J641H pneumatic flanged globe valves

Product Tags:

marine globe valve

manual globe valve

PN(MPa)	DN(mm)
PN(MPa)	DN(mm)	L	D	D1	n2	D6	b	f	f1	Z-φd	L1	H
1．6	50	230	160	125	100		16	3		4-φ18	185	645
	65	290	180	145	120		18	3		4-φ18	232	690
	80	310	195	160	135		20	3		8-φ18	232	715
	100	350	215	180	155		20	3		8-φ18	232	770
	125	400	254	210	185		22	3		8-φ18	283	780
	150	480	280	240	210		24	3		8-φ23	283	810
	200	600	335	295	265		26	3		12-φ23	283	967
	250	622	405	355	320		30	3		12-φ25	283	1143
	300	698	460	410	375		30	4		12-φ25	283	1292
2.5	50	230	160	125	100		20	3		4-φ18	185	645
	65	290	180	145	120		22	3		8-φ18	232	690
	80	310	195	160	135		22	3		8-φ18	232	715
	100	350	230	190	160		24	3		8-φ23	232	770
	125	400	270	220	188		28	3		8-φ25	283	780
	150	480	300	250	218		30	3		8-φ25	283	810
	200	600	360	310	278		34	3		12-φ25	283	967
	250	622	425	370	332		36	3		12-φ30	283	1143
	300	698	485	430	390		40	4		16-φ30	283	1292
4．0	50	230	160	125	100	88	20	3	4	4-φ18	185	645
	65	290	180	145	120	110	22	3	4	8-φ18	232	690
	80	310	195	160	135	121	22	3	4	8-φ18	232	715
	100	350	230	190	160	150	24	3	4．5	8-φ23	232	770
	125	400	270	220	188	176	28	3	4．5	8-φ25	283	782
	150	480	300	250	218	204	30	3	4．5	8-φ25	283	875
	200	600	375	320	282
